Milestones for 2004

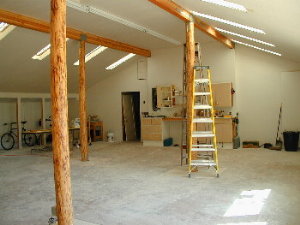

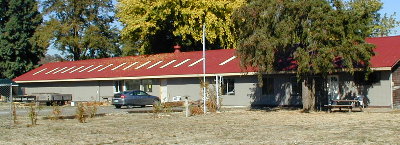

The ASET facility in Talent Oregon is progressing. As of October we are moving into the new workshop area. Other areas of the building will be completed as funds become available. Prototype Number 3 The focus for 2004 was the third generation prototype. It is designed to integrate several of the functions developed over the past year into one machine capable of producing enough material to build 800 feet of 12 inch thick wall in an 8 hour day. We hope to have the machine ready for limited testing late in the fall of 2004 and fully operational in time for the harvest season in 2005. Other components are being prepared to enable us to produce enough material in 2005 to perform all the testing needed to refine the product and build demonstration buildings.
Milestones for 2003Spring 2003 Compression tests were performed on samples of 4x4 beams by Assistant Professor Anthony Lamanna at Tulane University. The sample that was made with damp straw with a clay additive proved to be the strongest, sustaining a load of 3,000 pounds. Rebuilding the Strawjet machine: Based on the test results, we made some significant changes to the compression and binder portions of the Strawjet machine to accommodate the sticky mix of clay and straw. The result is a more powerful and more versatile machine. The new version is capable of binding plant material that is more resilient. Currently we have experimented with Jerusalem Artichoke and Teasel. While these materials may not be as plentiful or available as surplus biomass, they offer the possibility of making structural material that for use where more strength is required than could be achieved with straw.
. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
